How to Pair Lumos Devices with Tarran Bikes

Avatar
Keshaavan
  • Updated
Follow

General

To enhance the user experience, the Lumos App is currently undergoing a major upgrade. To successfully pair your Lumos device with a Tarran bike, you will need to use the app's Beta test version.
Please follow the steps below to complete the setup:

Supported Helmets
  • Nyxel, Ultra, Ultra E-bike


Step 1: Get the Lumos Beta App

Android Users:

  1. Download the Beta APK via this link: https://www.pgyer.com/lumos-android-a

iOS Users:

  1. Send your Apple ID email address to our team at service@tarranbikes.com to sign up for the Beta program.
(Note: You must use the email associated with your Apple ID; otherwise, the Beta app will not appear in your TestFlight.)
  1. Wait for our team to add your email to the Beta Test user list. You will receive an official invitation email upon successful registration.
  2. Open the invitation email and tap the link provided in the message.

  1. Set Up TestFlight
You will be redirected to TestFlight.
  • If you do not have TestFlight installed on your iPhone, please download the TestFlight app first.
  • If TestFlight is already installed, the link will launch the app automatically.

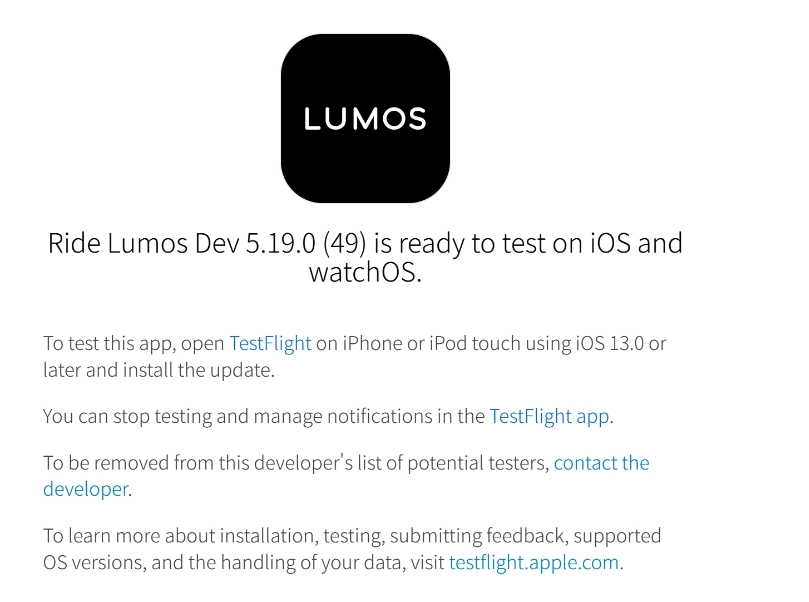

  • The app would look like this on the AppStore:

  1. Install the Lumos Beta App
Locate Lumos App (displayed as Ride Lumos Dev) within TestFlight, then complete the download and installation.
(Note: Once installed, the app name on your iPhone's home screen will still display as Lumos. Rest assured, the beta update has been successfully applied.)



Step 2: Pair the Helmet with the App

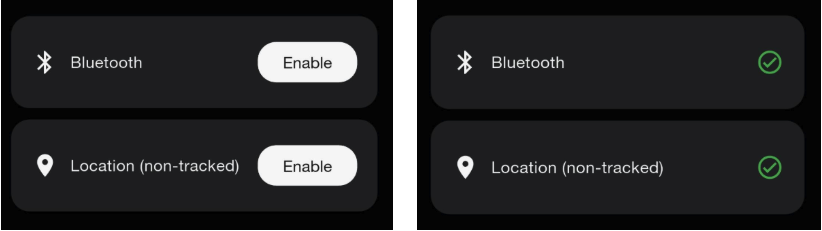

  1. Grant App Permissions: Ensure Bluetooth and any other required system permissions (such as location services, depending on your phone) are fully enabled for the Lumos App.

  1. Put Helmet into Pairing Mode: With the helmet powered off, press and hold the Power button for 3 seconds until the indicator light flashes, indicating pairing mode.

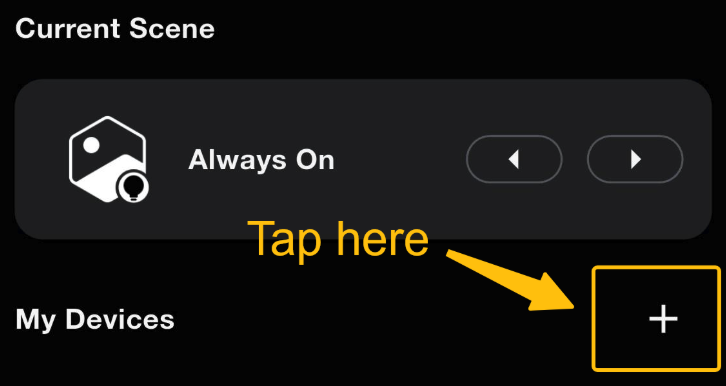

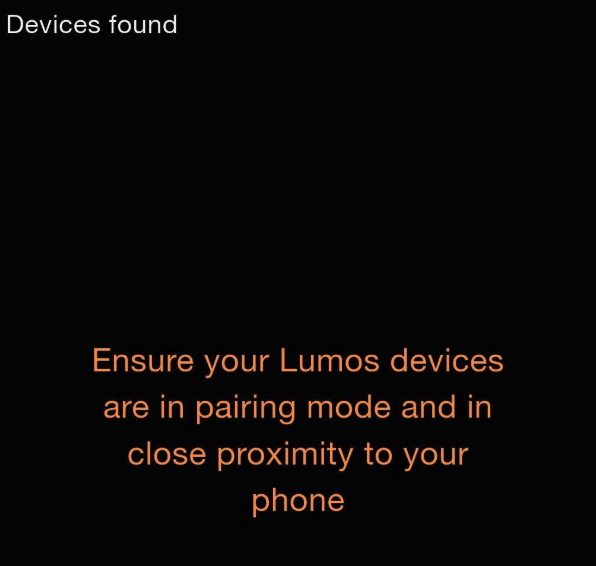

  1. Open the Pairing Interface: Launch the Lumos App and navigate to the device pairing screen.

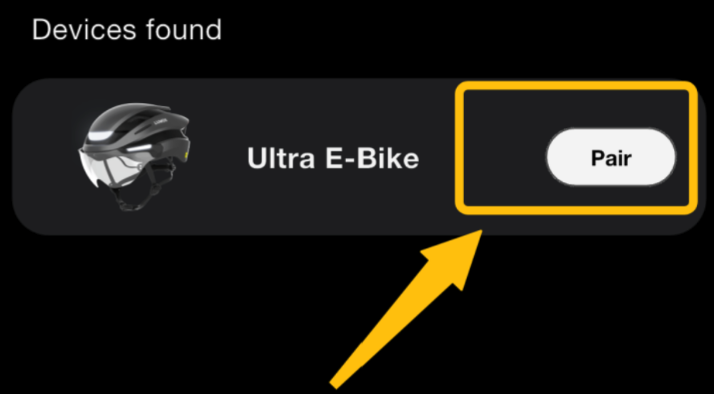

  1. Complete the Pairing: Select your helmet from the list and tap Pair. Once the pairing is complete, the button will change to Paired. Tap Continue to proceed

Step 3: Update to the Latest Firmware

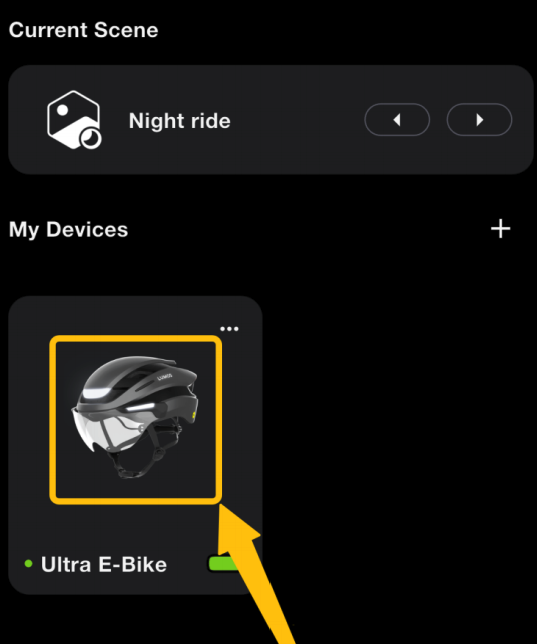

  1. After pairing, tap the helmet icon on the home screen. You will see a notification that a new firmware update is available
  1. Tap "Update Firmware" and follow the prompts to complete the upgrade process.
  2. Once the upgrade is finished, please verify the firmware version is V2.1 (x)


    Step 4: Pair the Helmet with the Tarran Bike

    1. Put the helmet into Pairing Mode: With the helmet powered off, press and hold the Power button for 3 seconds until the indicator light flashes, indicating pairing mode.
    2. Power on and Navigate: Power on your Tarran bike, then on the smart touchscreen, navigate to: Accessories > Add-on devices > Extra devices.
    3. Complete the Pairing: Wait for the bike to discover your helmet. Select your helmet on the screen and follow the on-screen prompts to complete the pairing.
