How do I replace the battery for my Nyxel with Mips/Quin?

To replace the battery pack for your Nyxel with Mips/Quin, simply follow these steps:

STEP 1:

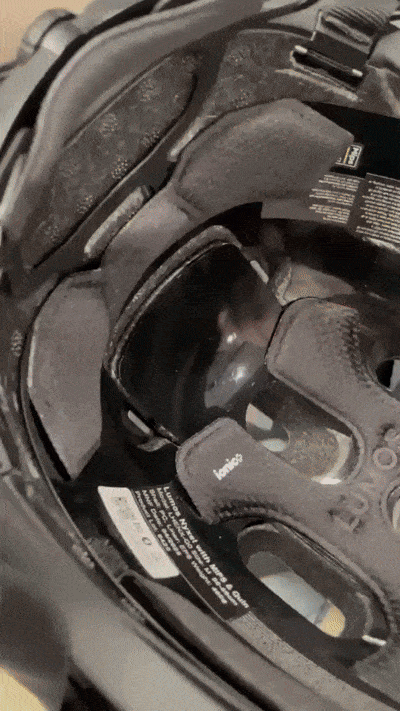

• Locate the MIPS Flap Covering the Battery Pack.
  Inside your helmet, you'll see a small flap built together with the MIPS liner that covers the battery compartment.

Step 2:

• Gently Lift the Flap.
  Carefully lift the flap using your fingers, as the flap is designed to be flexible, (the MIPS flap is not removable). Lifting this flap will reveal the battery pack and the clips that hold it in place.

Step 3:

• Press Both Side Clips of the Battery Pack Simultaneously.
  On either side of the battery pack, you'll see small plastic clips that secure it in its compartment. Using both fingers, press these clips at the same time (until you hear a click). This will release the battery from its locked position.

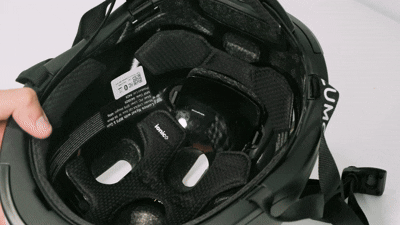

Step 4:

• Carefully Slide the Battery Pack Out.
  Once the clips are pressed, gently pull the battery pack straight out. It should slide out smoothly without needing to force it. Be sure to handle the battery with care, holding it by the sides, Since the battery is connected to pins that can be easily damaged, it's important to avoid using force when removing it.

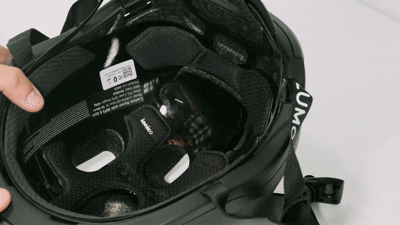

Step 5:

• Inserting the battery.

  Carefully align the new battery with the connector inside the compartment, Make sure the pins are aligned with the plug, following the 'R' (Right) and 'L' (Left) markings to ensure correct orientation. Gently push the battery into place until it is securely connected do not force it, as the pins are delicate and can be damaged. Once connected, place the battery fully into the compartment and press the two sides firmly until you hear a click.

If you have any other questions, please feel free to reach out to our support team (support@lumoshelmet.co)
